                                     Cm-244

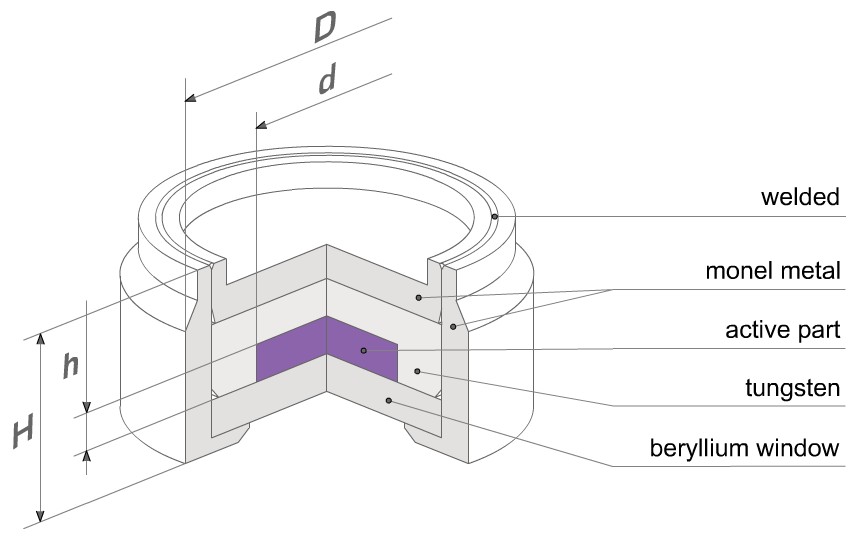

244Cm is incorporated in a graphite or ceramic matrix and sealed in a welded

titanium alloy or monel capsule with a brazed beryllium window.



Half Life: 18.11 Years

Photon Energy: XL12.12 / 22.89keV (9.4%)







Order Number

Nominal Activity (10%)

Typical photon output

ph/sec per 10-4 steradian

(12.12 / 22.89keV)

Overall geometric dimensions

DxH, mm

Active part

dxh, mm

mCi

MBq

SRCM24430*

30

1110

4.8x102

8x5

4x1

SRCM24495*

95

3515



10.8x5

 7x1



    Recommended working life: 10years

    * Made to IAEA Special Form
